EX9632R-H


    User manual







Tri-Band 3G Industrial Cellular Converter



Introduction of product:



EX9632R-H/EX9633R-H is a industrial class UMTS (3G, HSPA or EVDO) converter for system integrator to control remote device though Ethernet and TCP/IP protocol. By the time goes, technology today is all about communication. Internet network is a part of everyday life. Although Cable/DSL is wide spread everywhere, however, some field or outdoor application, such like large factory, mine, quarry are not able to be reached by those indoor broadband. The wireless network becomes a crucial part of industrial control for efficiency and convenience.

EX9632R-H/EX9633R-H industrial converter provides you a solution to access your field computer/micro processor/embedded system through 3G network by TCP/IP. Simply using by 3G/3.5G mobile network, you are about to control remote device or collect first hand, real time information by a broadband data stream.With up to 7.2Mbps*(HSUPA)speed, you can transfer any kinds of data steam, specially video or audio, through EX9632R-H/EX9633R-H industrial converter. With the simplest setting and configuration, you canenjoy the convenience of real time monitor filed situation without walk there.


Product highlight:

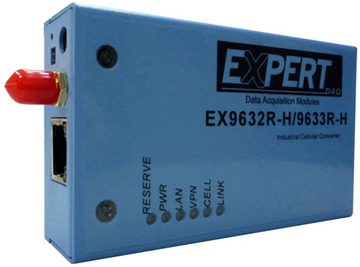

EX9632R-H



     ● Tri-Band 3G: WCDMA 850/1900/2100 MHz

     ● Qual-Band 2G: GSM 850/900/1800/1900 MHz



Protocol



     ● 3G Data Rate: max UL 384kbps/DL 384kbps
     ● 3.5G Data Rate: max DL 7.2Mbps



RJ45 interface



WEB UI configuration



DHCP client/server, NAT, VPN support







Specifications:


  Products name EX-9632R-H
  Frequency WCDMA 850/1900/2100 MHz
GSM 850/900/1800/1900 MHz

  GPRS Connectivity GPRS Multi-Slot Class 12
GPRS Mobile Station class B

  Data Rate GSM: UL 9.6kbps/DL 9.6kbps
WCDMA CS: UL 64kbps/DL 64kbps
WCDMA PS: UL 384kbps/DL 384kbps
HSUPA: UL 2.0Mbps/ DL 7.2Mbps
(UL can be updated to 5.76M)

  Coding Scheme CS-1, CS-2, CS-3 and CS-4
  Output power ≒2.5W
  Configuration Web UI
  Network Protocol DHCP Server/Client
NAT
SPI Firewall
VPN
SNMP

  Interface RJ45 (10/100 Base-T)
  Serial Port RS232 DB9
  SIM 3V/1.8V
  Antenna Female SMA
  Voltage DC5~25V (12V)
  Temperature Operation: -25 to +80°C ; Storage: -40°C to +85°C
  Humidity 5% ~ 95% relative humidity
  Dimension 75x50x16 mm
  Weight 200g




TOPSCCC Technology Co., Ltd

Nei-Hu Taipei 5F No 12 Lane 345 Yang Kuang St Nei Hu Taipei Taiwan
Tel: +886-2-27999080 Fax: +886-2-26575516 / 26585042
E-Mail: topsccc@topsccc.com
