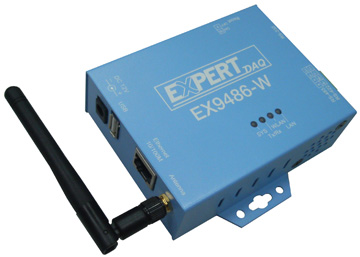

RS-232/422/485*1 TO LAN/WLAN Converter (simple gateway ARM9)


Key Specifications/Special Features:


WLAN



     ● Standard Compliance: IEEE 802.11b/g

     ● Spread Spectrum Technology: DSSS, OFDM

     ● Tx Power 11b: Maximum 20 dBm

     ● Tx Power 11g: Maximum 18 dBm

     ● Rx Sensitivity: -70 dBm @ 54 Mbps, -85 dBm @ 11Mbps

     ● Transmission Rate: 54 Mbps (max.) with auto fallback (54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2,1 Mbps)

     ● Transmission distance: Up to 300 meters(@12 Mbps, in open areas)

     ● Security: WEP 64-bit/128-bit data encryption, AES, WPA2

     ● Antenna Connector: Reverse SMA

     ● Network Mode: Infrastructure, Ad-Hoc

Serial

     ● No. of ports: 1 RS-232/422/485 port, male DB9, S/W selectable
     ● RS-232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
     ● RS-422 Signal : Tx+ , Tx- , Rx+ , Rx – ( Surge Protect )
     ● RS-485 Signal : Data+ , Data- ( Surge Protect )
     ● Serial Line Protection: 15 KV ESD for all signals

Serial Communication Parameters

     ● Parity: None, Even, Odd, Space, Mark
     ● Data bits: 5, 6, 7, 8
     ● Stop bits: 1, 1.5, 2
     ● Flow control: RTS/CTS, XON/XOFF
     ● Speed: 110 bps to 460.8+ Kbps

Power Requirements



     ● Power input 1: 12 VDC

Environmental



     ● Operating Temperature: -10 to 70°C (32 to 131°F), 5 to 95% RH
     ● Storage Temperature:-20 to 85°C (-4 to 185°F), 5 to 95%RH

Regulatory Approvals



     ● RoHS
     ● EMC: FCC Class A, CE Class A

Software Features



     ● Protocols: ICMP, IP, TCP, UDP, DHCP, BootP, ARP / RARP, Telnet, RTelnet, DNS, SNMP MIB II, HTTP, SMTP, SNTP
     ● Serial mode: Virtual Com / TCP Server / TCP Client / UDP / Serial Tunnel with advanced settings of
           。TCP Alive Check Timeout
           。 Inactivity Timeout
           。Delimiter for Data Packing
           。Force TX Timeout for Data Packing
     ● 4 Hosts simultaneous connection: Virtual Com / TCP server / TCP Client (only raw data)
     ● Security: HTTPS, SSH v2
     ● Programmable (Optional)
     ● Event notification by email / SNMP trap
     ● SNMP Trap
           。Cold/Warm Start
           。DSR, DCD Changed
           。IP Changed
     ● Authentication Fail
     ● SNMP Response
           。System MIB,
           。Interface MIB,
           。ICMP, IP, TCP MIB
           。UDP MIB
           。RS-232 MIB
     ● Utilities: Windows NT/2000/XP/2003/VISTA
           。Device discovery
           。Auto IP report
           。Device setting (run-time change, no rebooting)
           。Access control list
           。Group setting
           。Device monitoring
           。Serial port monitoring
           。Log info
           。Group Firmware update batch

Virtual COM/TTY Drivers (WDM mode, configuration in windows device manager): Windows NT/2000/XP/2003, VISTA
