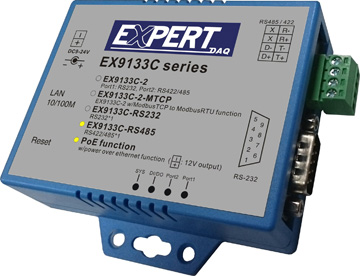

Serial to Ethernet Converter (RS422/485*1) w/PoE


Key Specifications/Special Features:



CPU: 32-bits ARM-Cortex-M4 CPU , 120 MHz(Max)

RAM: 128 K Bytes SRAM

ROM: 512 K Bytes Flash ROM

Ethernet:

     ● Port Type RJ-45 Connector
     ● Speed 10 /100 M bps ( Auto Detecting )
     ● Mode: TCP Server∕TCP Client∕UDP Client/Virtual COM/Pairing
     ● Setup HTTP Browser Setup
     ● Security Setup Password
     ● Protection Built-in 1.5KV Magnetic Isolation

Serial Port * 1 ports:

     ● Port RS-232/422/485 * 1 Port ( Auto Detect )
     ● Speed 300 bps~115.2 K bps
     ● Parity None , Odd , Even , Mark , Space
     ● Data Bit 5 , 6 , 7 , 8
     ● Stop Bit 1 , 2
     ● Port-1:
          RS-422 Rx+ , Rx- , Tx+ , Tx- (Surge Protect)
          RS-485 Data+ , Data- (Surge Protect)Built –in RS-422/RS-485 pull high Resistor15KV ESD for all signals

Watch Dog Function

Power: DC 9 –12 V , 500mA, DC Jack

Led Lamp

     ● SYS (PWR) , Port 1/2, DI/DO

Environment

     ● Operating Temperature: 0℃〜70℃

     ● Storage Temperature : -10℃〜80℃

Dimensions

     ● 115 * 90 * 27 mm ( W * D * H )

Weight: 140 gm



PoE: Supply Power Source approximate 12V after PoE Splitter
