EX9132CST-DIO


    User manual
    Driver
     Search utility
     Virtual com

    Block diagram

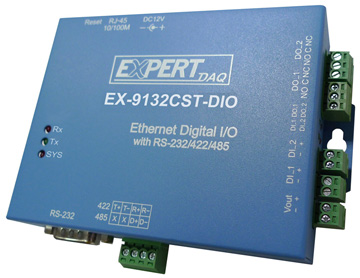

Serial to Ethernet Converter (RS422/485*1, RS232*1) with Digital I/O


Key Specifications/Special Features:



CPU: ST ARM Cortex-M3 32 bit processor, 72MHz

RAM: 64 K Bytes SRAM

ROM: 256 K Bytes Flash ROM

Ethernet:

     ● Port Type RJ-45 Connector
     ● Speed 10 /100 M bps ( Auto Detecting )
     ● Mode: TCP Server∕TCP Client∕UDP Client/Virtual COM/Pairing
     ● Setup HTTP Browser Setup
     ● Security Setup Password
     ● Protection Built-in 1.5KV Magnetic Isolation

Serial Port * 2 ports:

     ● Port RS-232 * 1 Port (DB9) , RS-422/485 * 1 Port ( Auto Detect )
     ● Speed 300 bps~115.2 K bps
     ● Parity None , Odd , Even , Mark , Space
     ● Data Bit 7 , 8
     ● Stop Bit 1 , 2
     ● Port-1:
          RS-232 Pins : Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD
     ● Port-2:
          RS-422 Rx+ , Rx- , Tx+ , Tx- (Surge Protect)
          RS-485 Data+ , Data- (Surge Protect)Built –in RS-422/RS-485 pull high Resistor15KV ESD for all signals



Digital Relay Output : Channel * 2
     ● Active High/ Low Selectable
     ● Relay Coil Voltage: 5V
     ● Contact Rating :24V@10A/ 120VAC@10A/240VAC@7A
     ● LED Lamp : DO-1 ; DO-2

Digital Input : Channel * 2
     ● Active High/ Low Selectable
     ● Isolation Voltage : 3750Vrms
     ● Status Indictor : 2 Input LED display
     ● Wet Contact : Logic 0 : 0~1V Max , Logic 1 : 3.3V ~ 30V Max.
     ● LED Lamp : DI-1 ; DI-2


Watch Dog Function

Power: DC 9 –24 V , 500mA(Terminal Block: optional/ DC Jack: Default)

Led Lamp

     ● TX, TX, SYS

Environment

     ● Operating Temperature: 0℃〜70℃

     ● Storage Temperature : -10℃〜80℃

Dimensions

     ● 150 * 120 * 30 mm ( W * D * H )

Weight: 900 gm
