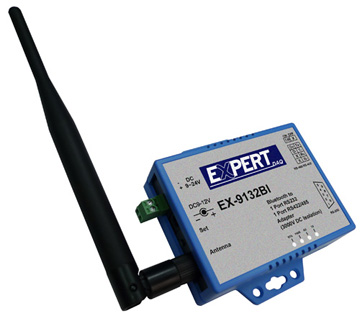

EX9132-BI


    User manual
    Driver
     Search utility







Bluetooth to RS232/422/485 with 3000VDC Isolation


Key Specifications/Special Features:



No.of Ports: RS-232 /422/RS-485 * 1 Port ( auto detect )

     ● RS-232: Rx , Tx , GND , RTS , CTS , DTR , DSR ( DB9 female / RX/TX crossed over )
     ● RS-422: Tx+ , Tx-, Rx+ , Rx- (Current ,Surge Protect )
     ● RS-485: Data+ , Data- (Current ,Surge Protect) Built –in RS-422/RS-485 Terminal Resistor
     ● Speed: 1200 bps〜115.2K bps
     ● Parity: None , Odd , Even
     ● Data Bit: 8
     ● Stop Bit: 1 , 2
     ● Flow Control: DTR / DSR , RTS / CTS
     ● SIGNAL Isolation: Optical Isolation 3000 Vrms (EX-9132BI )
     ● POWER Isolation: 3000 V DC to DC Isolation ( EX-9132BI )

Bluetooth: Compliant with Bluetooth v2.0+EDROperate in 2.4GHz – 2.483GHz ISM BandSupport Bluetooth Radio with Class 1 & 2 RFOperating Distance up to 100 Meters

SETUP: Windows Utility

Power: DC 9 ~ 24V / 150ma @ 9V , 60ma @ 24V

Led Lamp: SYS (red) , Pairing (green) , Rx(red) , Tx(green)

Environment: Operating Temperature: 0℃〜70℃Storage Temperature : -25℃〜80℃

Dimensions: 85 * 75 * 25 mm ( W * D * H )

Weight: 150 gm ( not include power )
