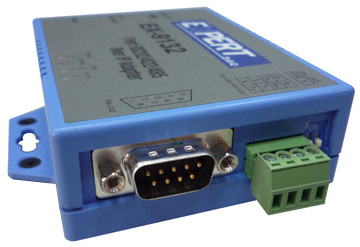

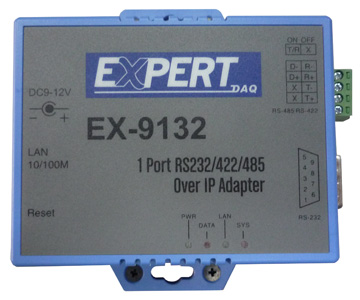

RS-232/422/485 TO Ethernet Converter (simple gateway 89C51)


Key Specifications/Special Features:



CPU : 8-bits CPU , 36.864 MHz

RAM : 32 K Bytes ROM : 64 K Bytes

NETWORK

     ● PORT : RJ-45 Connector
     ● SPEED : 10/100M bps(AUTO DETECT)
     ● PROTOCAL: ARP, IP, ICMP, UDP, TCP, HTTP, DHCP
     ● MODE : TCP Server/TCP Client ; UDP
     ● SETUP : HTTP Browser (IE & Netscape) , Com port
     ● SECURITY: Setup Password and Connect Password
     ● Built-in 1.5KV Magnetic Isolation

SERIAL

     ● PORT : RS232 / 422 / 485 * 1-Port
     ● RS-422/485 Surge protect ( optional )
     ● RS-422/485 Built-In Terminator Resistor
     ● SPEED : 300 bps〜115.2 K bps
     ● Parity : None, Odd, Even
     ● Data Bit : 7, 8
     ● Stop Bit : 1 , 2
     ● 15 KV ESD for all signals

Watch Dog Function

Reset Key : For Default Value Setup

Power : Switching Power CKT , DC 9 ~12V , 500mA

Lamp

     ● PWR : LED1
     ● DATA : LED2
     ● LAN : LED3
     ● SYS : LED4



Environment

     ● WORK TEMPERATURE : 0℃〜60℃
     ● STORE TEMPERATURE : -10℃〜70℃

Dimension

     ● W * L * H : 90 * 90 * 26 mm

Weight : 105 gm
