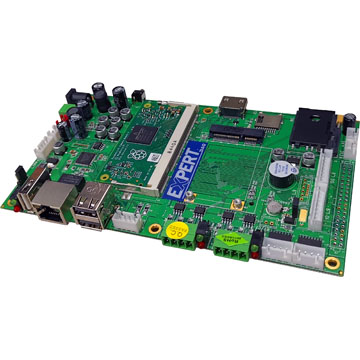

EX9786-RPC |
|
|
Raspberry PI Embedded w/ADIO/UART/USB/Mini PCIe/HDMI/SD/TCPIP |
|
|
|
Features:
-
A53 CPU 1.2GHz
-
LAN * 2 Support
- USB * 4 Support
- RS232/RS422/RS485 *2
- Mini PCIe Support
-
Micro SD Support
-
GPIO Support
-
HDMI Support
-
RTC/WDT
|
Specifications:
| CPU |
ARM Cortex A53 CPU , 1.2 G Hz |
| RAM |
1 G Bytes SDRAM |
| ROM |
4G/ 8G/ 16G/ 32G Bytes EMMC Flash ROM option |
| OS |
Linux raspbian 4.14 I GNU/Linux |
| |
|
| Ethernet |
|
| Port Type |
RJ 45 Connector |
| Speed |
10 /100 M bps ( Auto Detecting ) |
| Protocol |
ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, PPPoE,
DDNS, NTP, FTP, Telnet |
| Mode |
TCP Server / TCP Client / UDP |
| Setup |
HTTP Browser Setup (IE & Netscape) , Console |
| Security |
Setup Password |
| Protection |
Built in 1.5KV Magnetic Isolation |
| |
|
| Serial Port * 2 |
|
| Port |
RS 232 / 422 / 485 * 2 Port s (Surge Protect) |
| Speed |
300 bps 921.6 K bps |
| Parity |
N one , Odd , Even , Mark , Space |
| Data Bit |
5 , 6 , 7 , 8 |
| Stop Bit |
1 , 2 |
| RS-232 Pins |
Rx , Tx , GND |
| RS-422 |
Rx+ , Rx , Tx+ , Tx (Surge Protect) |
| RS-485 |
Data+ , Data- (Surge Protect) (Over current
protect) |
| |
|
| 15KV ESD for all signals |
| Digital Input / Output |
GPIO * 16 Pins |
| HDMI for Video / Audio |
| SPI Interface * 1 |
|
| I2C Interface * 1 port |
|
| SD Interface |
micro SD card ( for storage only ) |
| USB (Host*3 port) |
for WiFi Dongle, Bluetooth Dongle, Memory
storage |
| USB (Slave*1, jump select for Pi CM3
Initial Image Download) |
| RTC |
Real Time Clock * 1 |
| Buzzer * 1 |
|
| Watch Dog Function |
|
| Mini PCIE Connector (USB) for
4G/WIFI/BLUETOOTH/LoRa |
| Power |
DC 9~32 V, 1000 mA 500mA@12V, support DC Jack &
Terminal Input |
| Led Lamp |
SYS, EMMC MEMORY R/W LAN LINK, LAN T RANSMIT |
| Environment:
Operating Temperature: 10℃〜70℃ |
| Storage
Temperature: 20℃〜80℃ |
| Dimensions:
200*120*30mm (W*D*H) |
| Weight: 620gm |
| RoHS: Compliant
with RoHS |
| Regulatory
Approvals: EMC: FCC Class A, CE Class A |
|
|
|
|
