EX9000 series/Digital input/output/

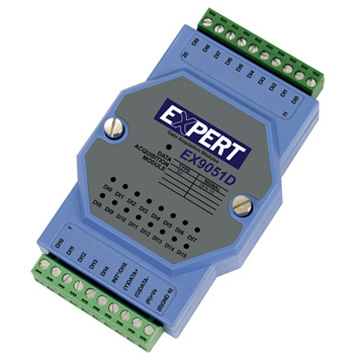

EX9051D-M


    User manual
    Driver

9000 Utility

DLL

OPC server

VB demo

    Pin assignment
    Block diagram
    Wire-connection
16 Input Isolated channels w/Modbus Module

Key Specifications/Special Features:
Interface : RS-485, 2 wires

Speed : 1200, 2400, 4800, 9600, 19.2K, 38.4K, 57.6K,115.2K

Input channels : 16 isolated input channels (sink/source).

     ● type: Isolated single ended with common source or common ground
     ● Logical level 0 : +4Vdc Max.
     ● Logical level 1 : +10V ~ +50Vdc
     ● Input impedance : 10K ohms
     ● Isolation Voltage: 3750Vrms

LED: 16 digital input status LED

Power input : +10V to +30Vdc

Power Consumption : 1.2W

Support Modbus protocol
