EX9000-MTCP series

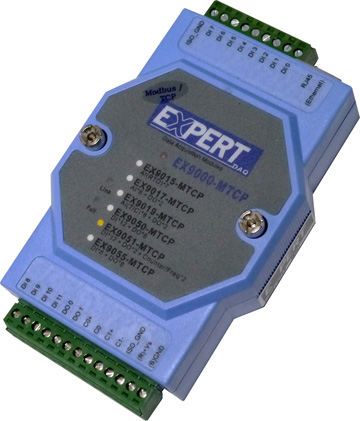

EX9051-MTCP


    User manual
    Driver

9000-MTCP Utility

Demo for DLL & ActiveX

    Pin assignment
    Block diagram
    Wire-connection

12 Input & 2 output & 2 counter/frequency channels with ModbusTCP module


Key Specifications/Special Features:



Support Ethernet 10/100 Based-T communication

Support protocol Modbus/TCP,TCP/IP,UDP,ICMP,ARP

Support 12*DI (Direct/Counter/Freq/Latch)& 2*DO(Direct/Pulse/Delay Width)

Support 2 channel Counter/ Frequency 4.5KHz Counter(Filter/SignalWidth-H/L)/4.5KHz Frequency(ValueSelect)/Latch(H/L) inputs

Support isolated input/output channel

Support 1KHz Pulsed(Freq/Width-H/L/Counts)/Delay(H-L/L-H Width) output

Support Dry contact Digital input type

Support open collector type Digital output

EX9000-MTCP series Utility/Software/Command/Web Server Support:

     ● Utility of EX9000-MTCP
     ● TCPDAQ(Ethernet I/O) ActiveX Control
     ● TCPDAQ(Ethernet I/O)DLL API
     ● TCPDAQ(Ethernet I/O)Data Structure
     ● ASCII Command
     ● MODBUS Command
     ● Web Server





Specifications:


Interface:
Communication 10/100 Based-T Ethernet
Protocol Modbus/TCP, TCP/IP, UDP, ICMP and ARP
Led indication Led for power and Ethernet link status
Isolation voltage 3000VDC
Digital Input:
Input channels 12
Input type: Dry contact
      ● logic level 0: close to ground
      ● logic level 1: open

Counter/Frequency/Latch 2 channel counter/frequency & Latch input
Counter: 4.5KHz &Filter Enable/Disable
Minimum Signal Width Low/High Selectable
4,294,967,285(32 bit)Counts
Freq.: 4.5KHz & Freq. Value Selectable
Latch: Input Latch Low/High Selectable

Digital Output:
Output channels 2
type Open collector to (NPN) up to 30V/500mA max load
H-L/L-H delay Each channel supports high to low or low to high delay Width output
Power requirement:
Consumption 2.0W
Power input 10~30VDC (unregulated)
