LoRa series

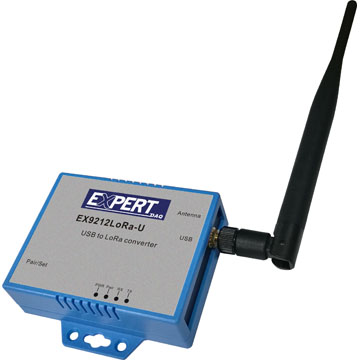

EX9212LoRa-U


    User Manual
    Driver
     Uility





USB to LoRa


Key Specifications/Special Features:

  • CPU : 32 bits MCU ,40 MHz , 16KB SRAM, 128KB Flash ROM
  • Support: Transparent
  • LoRa Semtech SX1272
    • Freq. : ISM band 86 862 ~ 936MHz
    • Receiver Sensitivity : -137 dBm
    • Transmit Output Power : 20 dBm
    • Sleep Current : 3 3uA (at power down state)
    • TX current < 140 mA@20 dbm , RX current < 10 mA
    • Security processor ( 128/192/256 bits AES )
    • Packet engine up to 256 bytes with CRC
    • Antenna : SMA Type , 2 dBi , changeable
    • Distance : Up To 1500~7500 Meters in free space
    • Data Rate : 0.244 ~ 18.2K bps ( LoRa ) / 300 K bps (FSK)
    • Application mode : Star
  • USB Port
    • Port of Type : USB * 1 port, Connector : USB type B
    • Chipset : Silicon Laboratories CP2102
    • Compliant : US1.0 , 1.1 , 2.0
    • Baud Rates : Full speed 12 M bps
    • Driver Support : Windows 98/ 2000/ XP/ 2003/ Vista /Win 7/Win 10, Mac Osx / Os9 / Linux2.4 / 2.6
  • Setup Tool : Windows Utility
  • Power : DC 5V / 150mA@ 5V
  • Led Lamp : SYS(red), Pairing(green), Rx(red), Tx(green)
  • Environment: Operating Temperature: 10〜70, Storage Temperature: 20〜80
  • Dimensions : 100 * 90 * 25 mm ( W * D * H )
  • Weight : 150 gm ( not include power )






Wiring Architecture:
