EX91019VA-i




    User manual
    Driver


IP66/69K Stainless Steel Panel PC(Intel 6th Gen. Core i3/i5) w/Resistive Touch


Key Specifications/Special Features:

  • 19" TFT-LCD Resistive Touch
  • 6th Gen Intel Core i3-6100U / Core i5-6300U(Option)
  • True Flat Front Bezel and Grade 304 Stainless Steel Enclosure (Grade 316 for Option).
  • IP66/IP69K Rated with M12 Connectors.
  • Touch on/off Button on the Side Edge for Hygienic Cleaning.


Specifications:

System
CPU Intel 6th Gen. Core i3-6100U / Core i5-6300U(option)
System Chipset SoC
Memory 1 x 260-pin SO-DIMM up to 16GB DDR4 2133MHz
I/O port
USB 1 x M12 8-pin for USB 2.0 with waterproof cover and chain
Serial/Parallel 1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain
Audio 1 x Audio Line Out
Lan 1 x M12 8-pin for LAN with waterproof cover and chain
Power 1 x Touch on/off button on the side
1 x Power switch on the side

Option 2 x optional blank M12 connector with waterproof cover and chain for selecting two from the following options:
2 x USB 2.0
1 x USB 3.0
1 x LAN (POE for option)
1 x CAN
Touch Screen
Type Resistive Touch
Interface USB
Light Transmission Over 80%
Storage Space
HDD 1 x 2.5" SATA HDD bay for SATA3 HDD
Expansion
Expansion Slot 1 x miniPCIe slot for WIFI/BT(optional), 4G/LTE(optional)
RFD module RFID module design on the front side(optional)
Display
Display Type 19" TFT LCD (standard)
19" TFT LCD (high brightness optional)

Max.Resolution 1280 x 1024
Max. Color 16.7M
Luminance(cd/m²) 350 / (standard)
1000 / (high brightness optional)

View Angle 170(H)/165(V) (standard)
170(H)/160(V) (high brightness optional)

Contrast 1000:1
Backlight Lifetime 50,000hrs
Power
Power input DC 9~36V
Power Consumption 49W
Operating system support
  Windows 7 64 bit, Windows 8 64 bit, Windows 10 IoT 64 bit
Mechanical
Construction Stainless steel enclosure
Mounting VESA 100 x 100, Yoke mount for optional
Dimensions(WxHxD) 470 x 388 x 60 mm
IP Rating Total IP66/IP69K
Net Weight 9.5 kg

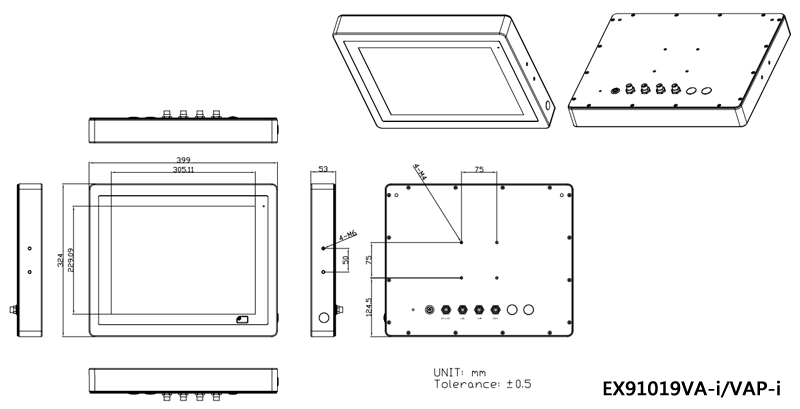

Dimension:
