EX9000 series/Digital input/output/

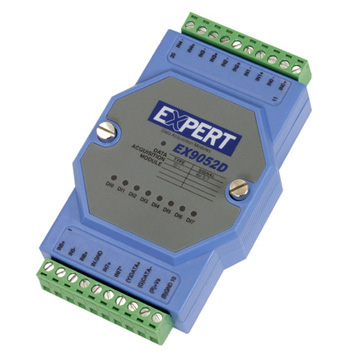

EX9052D-M


    User manual
    Driver

9000 Utility

DLL

OPC server

VB demo

    Pin assignment
    Block diagram
    Wire-connection
8 Digital Input channels w/Modbus Module

Key Specifications/Special Features:
Digital I/P Channel: 8

     ● Isolation: 6 diff & 2 common ground
     ● Isolation Voltage: 5000Vrms
     ● Digital Level 0: 1V Max
     ● Digital Level 1: 4V to 30V
     ● Input Impedance: 3K Ohms

Dual Watchdog Timer

Power Input: +10V to 30VDC

Power Consumption: 0.6W

Operating Temp: -25~75℃

Support Modbus protocol
