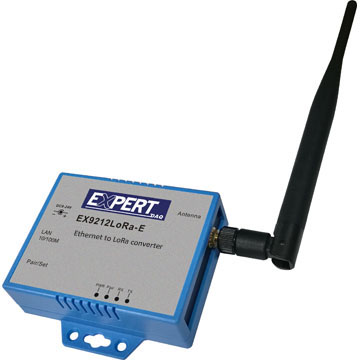

EX9212LoRa-E


    User Manual
    Driver
     Uility

     Virtual COM



LoRa To Ethernet (transparent)


Key Specifications/Special Features:

  • CPU : 32 bits MCU ,40 MHz , 16KB SRAM, 128KB Flash ROM
  • Support: TCPIP
  • LoRa Semtech SX1272
    • Freq. : ISM band 86 862 ~ 936MHz
    • Receiver Sensitivity : -137 dBm
    • Transmit Output Power : 20 dBm
    • Sleep Current : 3 3uA (at power down state)
    • TX current < 140 mA@20 dbm , RX current < 10 mA
    • Security processor ( 128/192/256 bits AES )
    • Packet engine up to 256 bytes with CRC
    • Antenna : SMA Type , 2 dBi , changeable
    • Distance : Up To 1500~7500 Meters in free space
    • Data Rate : 0.244 ~ 18.2K bps ( LoRa ) / 300 K bps (FSK)
    • Application mode : Star
  • Ethernet Port
    • Port Type:RJ-45 Connector
    • Speed:10 / 100 Mbps ( Auto Detect )
    • Protocol:ARP , IP , ICMP , UDP , TCP , HTTP , DHCP
    • Mode:TCP Server / TCP Client / UDP
    • Setup:HTTP Browser Setup ( IE )
    • Security:Login Password
    • Protection:Built-in 1.5KV Magnetic Isolation
  • Setup Tool : Windows Utility
  • Power : DC 9 ~ 24V / 150mA@ 9V , 60mA@ 24V
  • Power consumption: 12VDC / 95 mA, 9VDC / 120mA
  • Led Lamp : SYS (green) , Rx(red) , Tx(green)
  • Environment: Operating Temperature: 10〜70, Storage Temperature: 20〜80
  • Dimensions : 100 * 90 * 25 mm ( W * D * H )
  • Weight : 150 gm ( not include power )

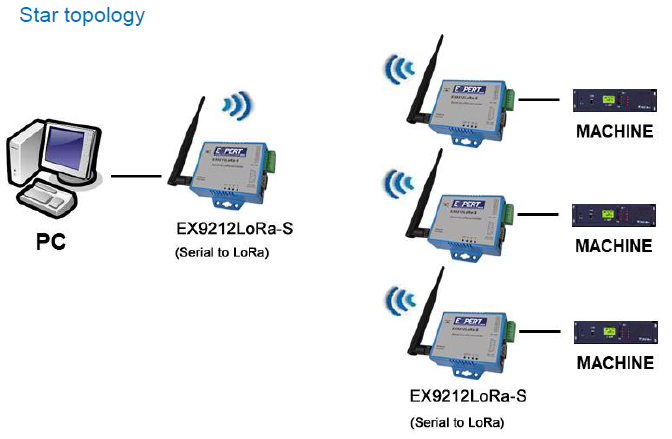

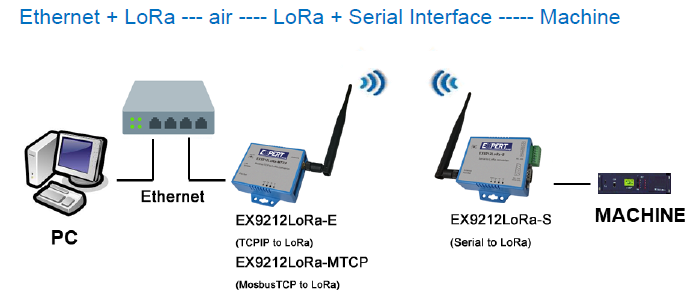

Wiring Architecture:
