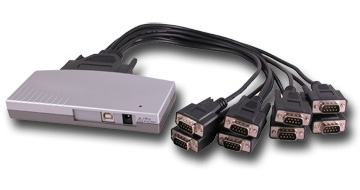

USB to RS232 *8 converter


Key Specifications/Special Features:



This unique cable allows you to use bridge/connectivity between the Universal Serial Bus (USB) and Serial Port interface.

The USB to Serial Bridge Cable is your fast solution to utilize the peripheral with serial port in an easy-to-use environment such as plug-n-play and hot swap function. This cable provides ideal connections to Modems, PDA, Digital Camera, Label printer or ISDN terminal adapters with over 1Mbps data transfer rate.


Product Features

     ● Provides 8 D-SUB Connectors
     ● Baud Rate from 75 bps to 6Mbps
     ● 512-Byte Deep FIFOs for each Port
     ● Supports 5,6,7,8 Data Bits
     ● Odd, Even, Mark, Space, or None parity mode
     ● Supports 1, 1.5 and 2 Stop Bits
     ● Supports USB Bus Power
     ● DC Jack for Optional DC 5V Power Input
     ● Optional DC 5V over DB9-Male Connector

System Requirements

     ● IBM PC 486DX4-100 MHz CPU or higher or compatible system
     ● Available USB port
     ● CD-ROM drive installed
     ● Windows 98SE/ME/2000/XP/WIN7

Series products

     ● EX91009, EX92009, EX94009
