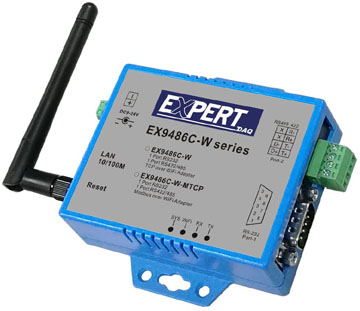

EX9486C-W-MTCP


    User manual
    Driver
     Search utility







Modbus TCP(WiFi) to Modbus RTU/ASCII simple gateway. (RS232/422/485*1)


Key Specifications/Special Features:





 Modbus RTU/ASCII Slave to Modbus TCP Master
 Modbus TCP Slave to Modbus RTU/ACSII Master
 Modbus modes*4 Browser selectable
 Support 8 TCP Masters simultaneously
 Support serial Master access to 8 TCP Slaves
 Web Browser Configuration
 Easy Wireless setup by PC or Mobile
 Supports 802.11b/g/n




Hardware



     ● CPU:ARM-9 CPU Linux OS, 200 MHz
     ● RAM:32MB Internal SRAM
     ● ROM:64M Bits Flash ROM
     ● Watchdog:Built in H/W Watchdog timer



WLAN


     ● Standard:802.11b/g/n
     ● Data Rate:11/54/72.2 Mbps @20MHz Band Width
     ● Modulation:DSSS; OFDM
     ● Frequency:2.4GHz
     ● Tx Power 11b:Max. 19dBm
     ● Tx Power 11g/n:Max. 16dBm
     ● Rx Sensitivity:-73dBm @ 54Mbps; -86dBm @ 11Mbps
     ● Tx Rate:Max. 54Mbps with auto fallback
     ● Tx Distance:Up to 100m
     ● Security:WEP 64-bit / 128-bit data encryption, AES,
     ● WPA / WPA2 personal, WPS2.0, WAPI
     ● Antenna:2 dBi RP-SMA connector
     ● Network Mode Infrastructure:Ad-Hoc; Soft AP (Setup)
     ● Mode:TCP Server / TCP Client
     ● Setup:HTTP Browser Setup (IE, Chrome, Firefox)
     ● Security:Login Password

Serial


     ● Port number:1
     ● Port Type:RS-232 or RS-422/485 1 port S/W selectable
     ● Connector:Male DB9 / 7-pin Terminal Block
     ● Speed:110 bps ~ 115.2 Kbps
     ● Parity:None , Odd , Even , Mark , Space
     ● Data Bit:5, 6 , 7 , 8
     ● Stop Bit:1 , 1.5, 2
     ● Built–in:RTC(Real Time Clock)
     ● Protection:422/485 Surge & Over Current Protection
     ● Built in 15KV ESD protection for all signals

Software



     ● Modbusv:RTU/ ASCII Slave to TCP Master
     ● 4 Modes:TCP Slave to RTU/ ASCII Master Selectable through Web Browser
     ● TCP Master:Up to 8 simultaneous TCP Master
     ● Serial Master:Access to 8 TCP Slaves simultaneously
     ● Configuration:Web Browser



Power Requirements


     ● DC 9 ~24V, 200mA@ 12VDC

Environmental


     ● Operating Temperature:-10°C ~ 65°C (14°F ~ 149°F)
     ● Storage Temperature:-20°C ~ 70°C (-4°F ~ 58°F)
     ● Humidity (Operating):10% ~ 95% non-condensing
     ● Humidity (Storage):5% ~ 95% non-condensing

Certification



     ● FCC:Part15 Class A
     ● CE:EN55022 Class A, EN55024
     ● RoHS:Compliance
