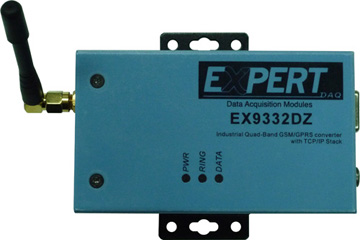

Industrial Quad-Band GSM/GPRS converter with TCP/IP Stack


Key Specifications/Special Features:


TCP/IP protocol ready by AT Command

Quad-Band: GSM 850/900/1800/1900 MHz (EX-9332D-Z)

Standard DB9 RS232 serial interface

Standard AT-CMD (EX-9332D-Z)

Data Rate: UL 42.8kbps/DL 85.6kbp (EX-9332D-Z)





  Products name EX-9332D-Z
  Frequency GSM 850/900/1800/1900 MHz
  GPRS Connectivity GPRS Multi-Slot Class 10/8 ; GPRS Mobile Station class B
  Data Rate DL: max. 85.6 kbps ; UL: max. 42.8 kbps
  Coding Scheme CS-1, CS-2, CS-3 and CS-4
  SMS Text and PDU ; cell broadcast
  FAX Group 3, class 1
  Voice FR, HR, EFR and AMR
  Output power ≒2.5W
  Configuration AT-CMD
  Interface DB9 RS232
  SIM 3V/1.8V
  Antenna Female SMA
  Voltage DC5~25V (12V)
  Temperature Operation: -25 to +80°C ; Storage: -40°C to +85°C
  Humidity 5% ~ 95% relative humidity
  Dimension 75x50x16 mm
  Weight 200g
