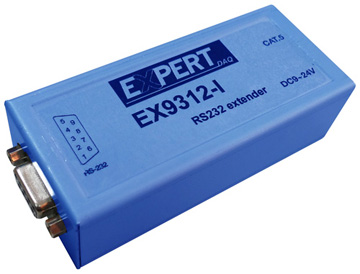

EX9312-I


    User manual
    Wire-connection






RS232 extender


Product highlight:



Full-duplex Data Communication



Pure Hardware Solution-real time Data Transfer



No Software Configuration



Transfer data or files between PCs. Equipments



One CAT-5 cable extension



Industrial Standard







Specifications:


  Serial port
  Port RS232*1
  Port type DB9 female
  Speed 300 bps~230.4k bps
  Parity None, Odd, Even, Mark, Space
  Data bits 5, 6, 7, 8
  Stop bits 1, 2
  RS232 pins Rx, Tx, GND, RTS, CTS
  RJ45 port
  Transmit Over Current and Surge Protect
  Receive Over Current and Surge Protect
  Power DC 7~24V, 50mA
  Environment
  Operating Temperature -25 ~ +70℃
  Storage Temperature -40 ~ +85℃
  Dimensions 97*43 * 27 mm ( W * D * H )
  Weight 160 g
  Regulatory Approvals CE/FCC, RoHS
  Warranty 1 year
