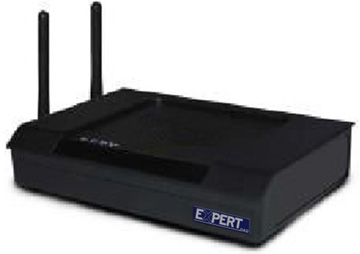

EX92405M2-1


    User manual
    Wire-connection






802.11b/g/n High Power AP/Router


Product highlight:



2.4GHz IEEE 802.11n 2x2 MIMO


Complies with IEEE 802.11bg


Data-rate up to 300Mbps


High power and High sensitivity


Wide coverage


RF output power adjustable


Firewall, URL/IP/Port/MAC filtering


Firmware upgrade via HTTP


Support Gateway, Bridge and WISP mode


Multiple ESSID


QoS enhancement-WMM


TCP/UDP/ICMP/ARP protocol stack


Virtual DMZ, Port forwarding


Easy setup wizard


Web-based utility


Passive PoE







Specifications:


  Standard IEEE 802.11b/g/n
  Chipset RTL8196C
  Flash/SDRAM 2M / 16M
  Antenna 2x 5dBi antennas detachable
  Frequency 2.400~2.483GHz
  Output Power 802.11b: up to 28 ± 1 dBm
802.11g: up to 26 ± 1 dBm
802.11n: up to 26 ± 1 dBm

  Sensitivity -96dBm @ 802.11b
-91dBm @ 802.11g
-91dBm @ 802.11n

  Security WPA(TKIP with IEEE 802.1x)
WPA2(AES with IEEE 802.1x)
WPA Mixed
802.1x authentication

  Operation Temperature -20°C ~ 60°C
  Dimension(mm) 147 x 98 x 30 mm
  Operation Mode Gateway
Bridge
Wireless ISP

  Wireless Mode AP
Client
WDS
AP+WDS

  Data Rate 802.11b: 11, 5.5, 2, 1Mbps
802.11g: 54, 48, 36, 24, 18, 12, 9 & 6Mbps
802.11n(20MHz): up to 144Mbps
802.11n(40MHz): up to 300Mbps

  Power requirement DC Jack: 12V DC
PoE: 12V Passive PoE

  Storage Humidity 10% ~ 90% (Non-condensing)
  Interface RP-SMA antennas connector x 2
RJ-45 WAN port x 1
RJ-45 LAN ports x 4
