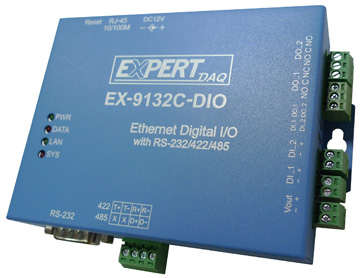

EX9132C-DIO


    User manual
    Driver
     Search utility
     Virtual com

    Block diagram





Serial to Ethernet Converter with Digital I/O


Key Specifications/Special Features:



CPU: 32-bits ARM-Cortex-M3 CPU , 50 MHz(Max)

RAM: 64 K Bytes SRAM

ROM: 256 K Bytes Flash ROM

Ethernet:

     ● Port Type RJ-45 Connector
     ● Speed 10 /100 M bps ( Auto Detecting )
     ● Protocol ARP , IP , ICMP , UDP , TCP , HTTP , DHCP , TELNET
     ● Mode TCP Server / TCP Client / UDP
     ● Setup HTTP Browser Setup (IE & Netscape)
     ● Security Setup Password
     ● Protection Built-in 1.5KV Magnetic Isolation

Serial Port * 2 ports:

     ● Port RS-232 * 1 Port (DB9) , RS-232/422/485 * 1 Port ( Auto Detect )
     ● Speed 300 bps~115.2 K bps
     ● Parity None , Odd , Even , Mark , Space
     ● Data Bit 5 , 6 , 7 , 8
     ● Stop Bit 1 , 2
     ● Port-1 RS-232 Pins : Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD
     ● Port-2 RS-232 Pins : Rx , Tx , GND
     ● RS-422 Rx+ , Rx- , Tx+ , Tx- (Surge Protect)
     ● RS-485 Data+ , Data- (Surge Protect)Built –in RS-422/RS-485 pull high Resistor15KV ESD for all signals

Digital I/O * 8 TTL (optional)

Watch Dog Function

Power: DC 9 –12 V , 500mA

Led Lamp

     ● SYS (PWR) , LAN , Rx , Tx

Environment

     ● Operating Temperature: 0℃〜60℃

     ● Storage Temperature : -10℃〜70℃

Dimensions

     ● 90 * 60 * 20 mm ( W * D * H )

Weight: 65 gm
