EX9132-2


    User manual
    Driver
     Search utility
     Virtual com

    Block diagram

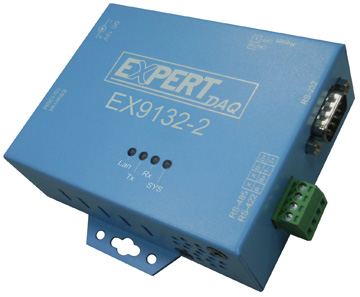

RS-232*1, RS422/485*1 to Ethernet Converter (simple gateway ARM7)


Key Specifications/Special Features:



CPU : 32-bits ARM-7 CPU , 25 MHz

RAM : 2M Bytes SDRAM (1M*16Bits)

ROM : 128K Bytes FlashROM

NETWORK

     ● PORT : RJ-45 Connector
     ● SPEED : 10/100M bps(AUTO DETECT)
     ● PROTOCAL: ARP, IP, ICMP, UDP, TCP, HTTP, DHCP
     ● MODE : TCP Server/TCP Client ; UDP
     ● SETUP : HTTP Browser (IE & Netscape) , Com port
     ● SECURITY: Setup Password and Connect Password
     ● Built-in 1.5KV Magnetic Isolation

SERIAL

     ● RS232 * 1-Port
     ● RS422 / 485 * 1-Port
     ● RS-422/485 Surge protect ( optional )
     ● RS-422/485 Built-In Terminator Resistor
     ● SPEED : 300 bps〜115.2 K bps
     ● Parity : None, Odd, Even
     ● Data Bit : 7, 8
     ● Stop Bit : 1 , 2
     ● 15 KV ESD for all signals

Watch Dog Function

Reset Key : For Default Value Setup

Power : Switching Power CKT , DC 7 ~15V , 500mA

Lamp

     ● SYS : LED1
     ● DATA : LED2
     ● LAN : LED3
     ● YSY : LED4

Environment

     ● WORK TEMPERATURE : 0℃〜50℃
     ● STORE TEMPERATURE : -10℃〜70℃

Dimension

     ● W * L * H : 110 * 90 * 30 mm

Weight : 146 gm
