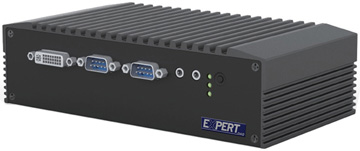

EX92211 |
|
Intel® Atom fanless BOX PC |
|
Key
Specifications/Special Features:
-
Intel Apollo Lake SoC processor
-
Fanless design
-
Support DVI I/O port
|
|
Specifications:
MainBoard |
|
CPU |
Intel® Atom™ x7-E3950 (Quad Core, 2M Cache, up to 2.0
GHz)
Intel® Atom™ x5-E3940 (Quad Core, 2M Cache, up to 1.8
GHz)
Intel® Atom™ x5-E3930 (Dual Core, 2M Cache, up to 1.8
GHz) |
|
System Memory |
SO-DIMM DDR3L up to 1866MHz x 1, Max. 8GB |
|
Graphic |
Intel® HD Graphics 500 / Intel® HD Graphics 505 |
|
Cooling Solution |
Fanless |
|
BIOS |
AMI uEFI BIOS |
|
O.S Support |
Windows 10 IoT Enterprise (Entry / Value / High End)
Linux kernel 3.0+ & associated distributions |
|
Storage device |
|
mSATA SSD |
mSATA SSD from miniPCI socket x 1 |
|
HDD/SSD |
2.5” HDD or 2.5” SSD x 1 (SATA 3.0) |
|
Front I/O Ports |
|
COM1 |
DB9 for RS232 x 1 |
|
COM2 |
DB9 for RS485 x
1 |
|
DVI |
DVI-I display
output x1 |
|
Leds |
Power status x 1, Storage x 1, 3G / 3.5G x 1 |
|
Audio |
MIC-in x 1, Line-out x1 |
|
Power button |
Power on/off switch x 1 |
|
Rear I/O Ports |
|
LAN |
Gigabit Ethernet by RJ-45 x 1, support Wake on LAN |
|
USB |
USB3.0 x 2 |
|
Display Port |
HDMI x 1, VGA x 1 |
|
Remote Power Switch |
Remote power on/off switch x 1 |
|
LEDS |
Power status x 1, Storage x 1, 3G / 4G LTE x 1 |
|
12VDC Input |
2-pins 12V DC input with lock connector x 1 |
|
Others |
|
Expansion |
Mini PCIe x 1 |
|
Communication |
Wireless LAN module, mini PCIe type (Optional) |
|
Wall mount |
Support VESA Mount |
|
Mounting Mechanism |
Support VESA Mount optional |
|
Color |
Back |
|
Material |
Aluminum / SECC |
|
Cerftification |
CE / FCC |
|
Dimension |
20 cm x 6.2 cm x 12 cm (W x D x H) |
|
Weight |
1.7 kg |
|
|
|
|

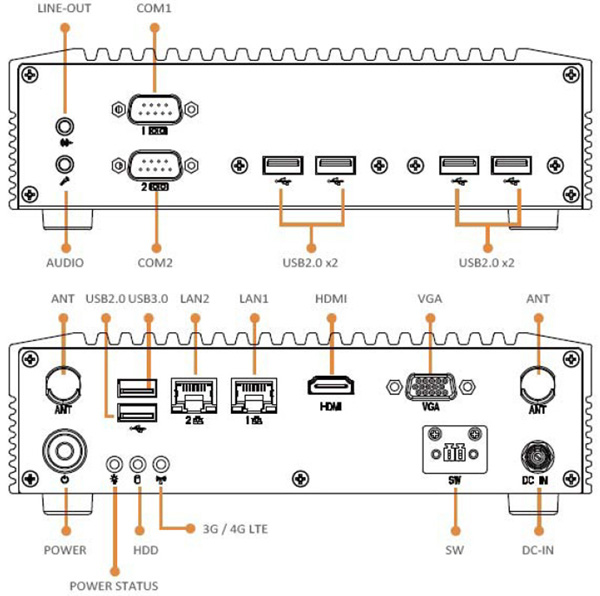

I/O Interface:

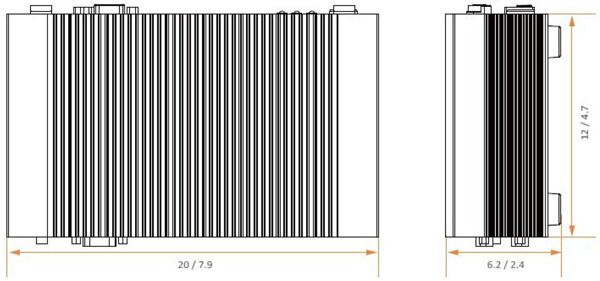

Dimension:
|
|
|
|
