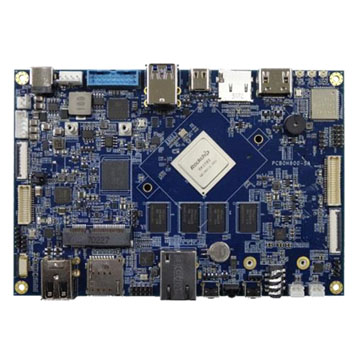

EX9886U-RK-MPPC |
|
|
Rockchip RK3399 Android 7.0 / Ubuntu 16.04 / Debian Embedded Board |
|
|
|
Features:
-
Android 7.0 / Ubuntu 16.04 / Debian
-
Rockchip RK3399 2Ghz
- HDMI Input (receiver) Module
- LVDS Output (display) Module
- 4xCOM Port Module (Isolated)
-
mPCIe form factor
-
3G/LTE socket
|
Specifications:
| CPU |
Rockchip RK3399 (2x ARM Cortex-A72 + 4x ARM
Cortex-A53) |
| OS |
Android 7.0 / Ubuntu 16.04 / Debian |
| DDR RAM |
1GB / 2GB / 4GB |
| Flash ROM |
8GB / 16GB |
| Display |
1x HDMI 2.0 (4Kx2K @60fps) |
| Interface |
1x DisplayPort 1.2 (4Kx2K @60fps)
1x eDP 1.3 (2560x1600 @60fps)
MIPI-DSI (2560x1600 @60fps) |
| MIPI |
1x CSI + 1x DSI + 1x (CSI or DSI) |
| Touch |
1x Capacitive Touch Screen Interface (I2C) |
| Audio Interface |
1x mic/earphone combo connector + 2x speaker
Connector |
| USB 2.0 Host |
2x USB 2.0 type-A + 1x USB 2.0 pin header |
| USB 3.0 Host |
2x USB 3.0 type-A + 2x USB 3.0 pin header |
| Type-C |
USB 3.0 OTG / DisplayPort 1.2 |
| SD Card slot |
1x microSD |
| Ethernet |
1x 10/100/1000 Mbps (RJ-45) |
| WiFi/BT
(optional) |
WiFi 802.11 b/g/n/ac + Bluetooth 4.1 |
| 3G/LTE Modem |
3G/LTE socket (mPCIe form factor) + microSIM
socket |
| Sensor
(optional) |
3-axis Accelerometer + 3-axis Gyroscope |
| Buzzer |
1x Buzzer |
| GPIO |
8-bit input/output |
| miniPCIe |
1x MiniPCI-e socket |
| Console port |
1× UART (console / debug) |
| I2C port |
1x I2C master port) |
| IR |
1x IR receiver |
| Power Input |
DC 12V - 24V |
| Dimension |
102 x 150 x 2.6 mm |
| Weight t |
129g (including heatsink) |
| Environment |
TBD |
|
|
|
Optional
Products:
| Power Adapter(+12V)+power cord |
| 4x RS232/RS422/RS485 card with isolation |
| LVDS Display I/F + MIPI cable + LVDS cable |
| HDMI Input (Receiver) Module |
| LTE Module |
| 3G Module |
|
|
|
|
|
