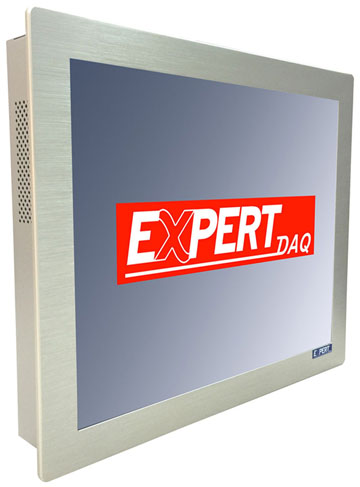

19" ExpertDAQ system


Key Specifications/Special Features:




19“ LCD Touch with Intel® BayTrail-D SoC Processor, J1900

Flat-bezel Panel PC with Touch Screen and Intel® Atom™ CPU

USB 2.0/3.0, Dual RJ-45 Gigabit LAN, Audio(internal)

RS-232/422/485, RoHS Compliant , IP65 Protection

DI/DO/AI/AO(Optional: EX9000/ M series)

Utility of EX-9000 & DEMO kit & DLL ready,

ExpertView of SCADA (DEMO kit included w/ EX9000 driver)







Order information:


  Optional: 12“/15“/17“/21“ with Digital/ Analog IO
CPU/ Main Board
Certification of Supply(for Rail Way/ Health Care/ Marine/ Military..)
Wall Mount/ VESA Mount kit

  Accessories: Power adaptor/ cord
CD of EX9000/ Modbus (Utility/ Demo/ DLL/ Library/ Manual/
Wire Connection/ Block Diagram)
ExpertView of SCADA (DEMO kit included w/ EX9000 driver)

  OEM/ ODM: Customized
  Relative Products: IIOT/ i – Cloud (Demo Kit ready)









Specifications (ExpertDAQ System):

  LCD Panel Specification
  Model EX98550-DAQ EX90550-DAQ EX92550-DAQ EX95550-DAQ EX97550-DAQ EX99550-DAQ
  Viewable Size Image 8" 10.4" 12.1" 15" 17" 19"
  Resolution 800*600 800*600 800*600 1024*768 1280*1024 1280*1024
  Brightness 250cd/m2 400cd/m2 450cd/m2 250cd/m2 250cd/m2 250cd/m2
  Active Display Area 162.0*121.5 211.2*158.4 246*184.5 304.1*228.0 337.9*270.3 376.3*301.0
  Pixel Pitch 0.202*0.202 0.264*0.264 0.307*0.307 0.297*0.297 0.264*0.264 0.294*0.294
  Contrast Ratio 500:1 400:1 700:1 600:1 1000:1 1000:1
  Display Color 16.7M
  Response time 25ms
  Viewing Angle U/D 50/70
L/R 70/70
U/D 60/70
L/R 70/70
U/D 65/75
L/R 80/80
U/D 80/80
L/R 80/80
U/D 80/80
L/R 85/85
U/D 80/80
L/R 70/70

  Power Consumption 40W 40W 40W 45W 45W 45W
  Touch (Optional) 5 -wires Resistive touch




Specifications (Main Board):

  Processor Intel® BayTrail-D SoC Processor, J1900
  Chipset INTEL® NM10
  Memory 4.0 GB DDR3 SDRAM SO-DIMM (system max. 4 GB)
  Expansion slots 2*Mini PCI-E
  Storage 1 * Serial ATA HDD
  Ethernet 2 * RTL8111E PCI-EVL Gigabit LAN

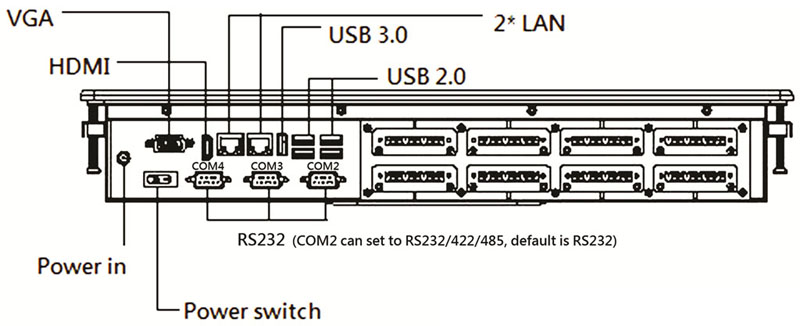

  I/O 2 x DB-9 RS-232 ports / 1 x DB-9 RS-232/422/485 port
1 x VGA connector
2 x RJ 45 LAN
1 x Power switch
12 V DC in

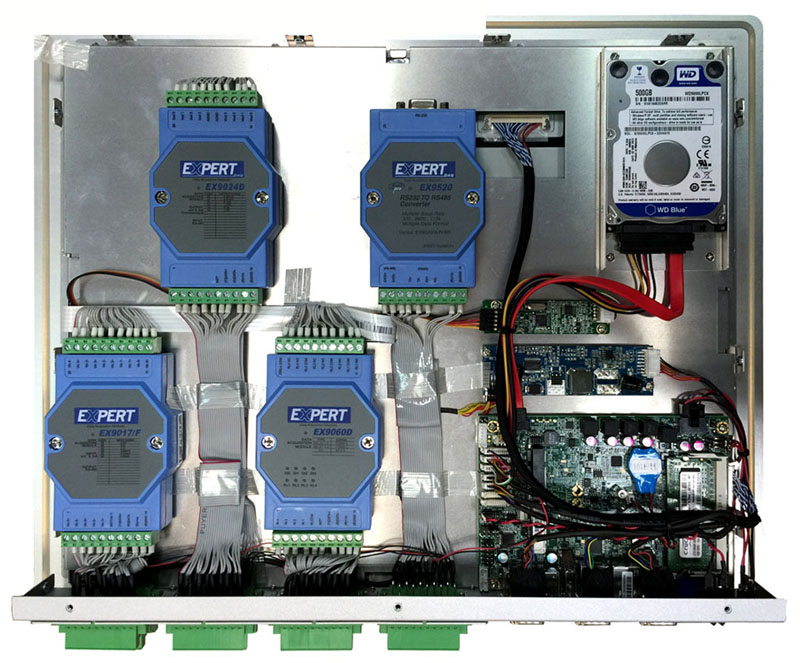

8 x Terminal Block (10pin) ready for DI & DO & AI & AO
4 x USB2.0, 1x USB3.0
1 x HDMI

  Power Supply Input: 100 VAC ~ 240 VAC @ 50 Hz / 60 Hz / DC jack:12 V/ 5A
  Humidity 5% to 95%, non-condensing
  Construction Material Aluminum (front panel)/ Silver Color
  Temperature operating within -20°C ~ 50°C, storage within -30°C ~ 80°C

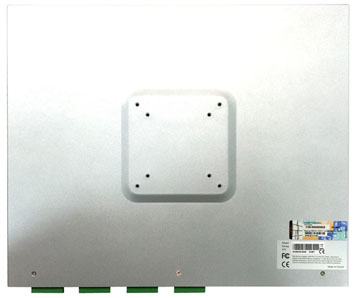

  Mounting Wall mount (VESA 100 mm x 100mm)
  Dimension 448 mm x 373 mm x72.5 mm
  Weight 10 kg / 13 kg
