17" ExpertDAQ system


Key Specifications/Special Features:



17“ LCD Touch with Intel® Atom™ D2550 processor

12V only single voltage design for AT/ATX System Power

On-board DDR3 1066 MHz 2/4GB SDRAM

Support VGA and 24-bit LVDS with dual-display

Complete I/O with 4*USB, SATA 3Gb/s, 4*COM and DVI

Dual GbE & Mini PCIe(Half/ Full)

Resistive/Capacitive(optional) touch; Metal/Aluminum(optional)

DI/DO/AI/AO(Optional); Terminal Block ready; External Power Supply(10~30V DC)

Utility of EX-9000 & DEMO kit& DLL ready

ExpertView of SCADA (DEMO kit included w/ EX9000 driver)







Order information:



1. DIO/AIO or ModBus optional;
2. GSM/GPRS/WiFi optional
2. License of ExpertView of SCADA
3. 8"/10.4"/12.1"/15”/17”/19” ready for selection
4. OEM/ODM Welcome









Specifications (ExpertDAQ System):

  LCD Panel Specification
  Model EX98550-DAQ EX90550-DAQ EX92550-DAQ EX95550-DAQ EX97550-DAQ EX99550-DAQ
  Viewable Size Image 8" 10.4" 12.1" 15" 17" 19"
  Resolution 800*600 800*600 800*600 1024*768 1280*1024 1280*1024
  Brightness 250cd/m2 400cd/m2 450cd/m2 250cd/m2 250cd/m2 250cd/m2
  Active Display Area 162.0*121.5 211.2*158.4 246*184.5 304.1*228.0 337.9*270.3 376.3*301.0
  Pixel Pitch 0.202*0.202 0.264*0.264 0.307*0.307 0.297*0.297 0.264*0.264 0.294*0.294
  Contrast Ratio 500:1 400:1 700:1 600:1 1000:1 1000:1
  Display Color 16.7M
  Response time 25ms
  Viewing Angle U/D 50/70
L/R 70/70
U/D 60/70
L/R 70/70
U/D 65/75
L/R 80/80
U/D 80/80
L/R 80/80
U/D 80/80
L/R 85/85
U/D 80/80
L/R 70/70

  Power Consumption 40W 40W 40W 45W 45W 45W
  Touch (Optional) 5 -wires Resistive touch

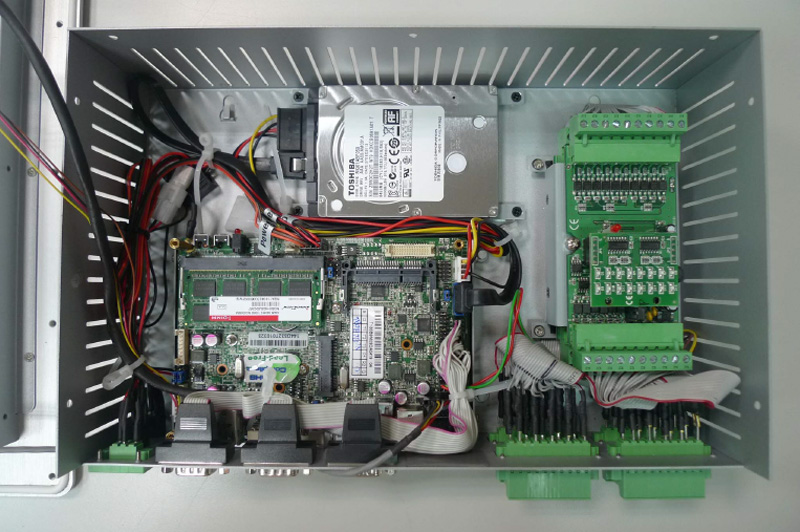

Specifications (Main Board):

  Processor Intel® dual core Atom™.D2550 1.86GHz processor
  Chipset INTEL® NM10
  BIOS AMI 16MB SMT Flash ROM
  Memory 1 * DDR3 1066MHz Single CH SO-DIMM up to 4GB
  Expansion slots 1*Mini PCI-E
  Storage 1 * Serial ATAII 3Gb/s connectors
1 * CFast card socket

  Audio Realtek ALC662 HD Audio CODEC with 4-Channel
  Graphic GMA 3650/Graphic core speed 640MHz
  Ethernet 2 * RTL8111E PCI-EVL Gigabit LAN
  USB Embedded 6*USB 2.0/1.1
  LVDS Onboard 1 * 24-bits Dual channel & 1 * 18-bits Single LVDS connectors
  Rear Panel I/O 4 * USB 2.0/1.1 ports
2 * RJ-45 ports & 2*RS232
Line-out port
1 * DVI-I port
1 x Audio jacks (Line-out)
1 * 12V DC-IN JACK

  Internal I/O 2 * USB 2.0 header
1 * Audio header
System/Chassis/NB Fan Connectors
1 * GPIO header
1 * CFast card reader socket
DIY switch x2 (reset & power button)
2 * COM header (COM3 for RS232,COM4 for RS485 Default)

  Power Supply 12V input only
AT/ATX mode select
4-pin (2x2) power connector

  Fan Connector 1 x 3-pin CPU fan, 1 x 3-pin system fan
  Power Consumption DC 12V
  Temperature operating within 0°C ~ 60°C, storage within -20°C ~ 85°C
  Form Factor 3.5" SBC dorm factor (146 mm x 102 mm)
  Certificate CE,FCC,RoHS,ERP
  Functional ATM, Automation, Medical Equipment, Security, General Application, Transportation, Digital Signage, Kiosk, POS machine, LCD TV PC, Embedded Fanless application
