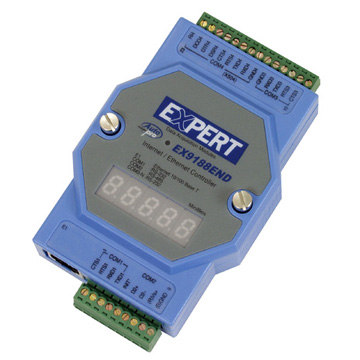

Internet Communication Controller w/RS232*2 + RS485*1 w/Modbus-TCPIP


Key Specifications/Special Features:



EX9188E3D-MTCP Support RS232*2, RS485*1

Ethernet port for TCP/IP features TCP, UDP, IP, ICMP, ARP, RARP

Support ModbusTCP to ModbusRTU

COM1 Can be used to download program and can be RS232 port

Dual Watchdog support for system recovery

CPU 80188, 40MHZ

     ● SRAM 256KB
     ● FLASH ROM 512KB
     ● EEPROM 2KB
     ● EMBEDDED OS RomDos(Datalight)
     ● Optional: 512KB SRAM, RTC (EX9188E3D-MTCP-512)








What is EViSP?

The EViSP creates a bridge between the host PC and 9188E via TCP/IP protocol. By using EViSP, the host PC can treats the COM port of 9188E as its own internal COM port so that the application programs can simply control the COM port of 9188E without handling the network (TCP/IP) layer.






Series product:



Model EX9188E1D-M EX9188E2D-M EX9188E3D-M EX9188E4D-M EX9188E5D-M EX9188ED8D-M
Ethernet port 10 base T
COM1 RS232(5 wire) RS232(5 wire) RS232(5 wire) RS232(5 wire) RS232(5 wire) RS232(5 wire)
COM2 x RS485(Isolate) RS485(Isolate) RS485(Isolate) RS485(Isolate) RS485(Isolate)
COM3 x x RS232(3 wire) RS232(3 wire) RS232(3 wire) RS232(3 wire)
COM4 x x x RS232(3 wire) RS232(3 wire) RS232(3 wire)
COM5 x x x x RS232(3 wire) RS232(3 wire)
COM6 x x x x x RS232(3 wire)
COM7 x x x x x RS232(3 wire)
COM8 x x x x x RS232(3 wire)

Note:
COM1: Program download RS232 (3 wire)
