EX9000 series/Digital input & Relay Output/

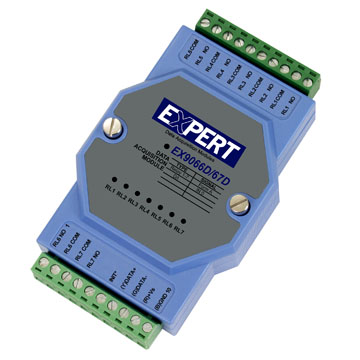

EX9067D


    User manual
    Driver

9000 Utility

DLL

OPC server

VB demo

    Pin assignment
    Block diagram
    Wire-connection
7 Output channels Module

Key Specifications/Special Features:
Digital O/P Channel: 7

     ● Relay type: Form A
     ● Contact Rating: 0.5A@120AC, 1A@24VDC
     ● Surge Strength: 1500V
     ● Operate Time: 5mS Max
     ● Release Time: 2mS Max
     ● Min. Life: 105ops

Dual Watchdog Timer

Power Input: +10V to 30VDC

Power Consumption: 1.7W

Operating Temp: -25~75℃
