EX9000 series/Digital input & Solid State Relay Output/

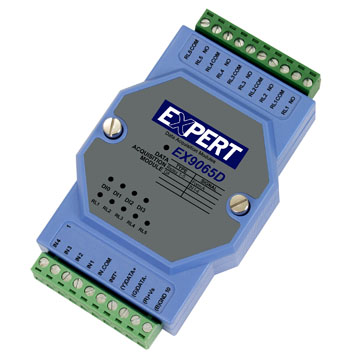

EX9065AD


    User manual
    Driver

9000 Utility

DLL

OPC server

VB demo

    Pin assignment
    Block diagram
    Wire-connection
5 Output channels(AC-SSR, 24 to 265 Vrms), 4 Input channels Module

Key Specifications/Special Features:
Digital O/P Channel: 5

     ● Relay type: 9065D 5A@250VAC/30VDC
     ● 9065AD AC-SSR Normal Open
     ● 9065BD DC-SSR Normal Open

Digital I/P Channel: 4

     ● Isolation: Isolation with common Sources
     ● Isolation Voltage: 3750Vrms
     ● Digital Level 0: 1V Max
     ● Digital Level 1: 4V to 30V
     ● Input Impedance: 3K Ohms

Dual Watchdog Timer

Power Input: +10V to 30VDC

Power Consumption: 1.7W

Operating Temp: -25~75℃
