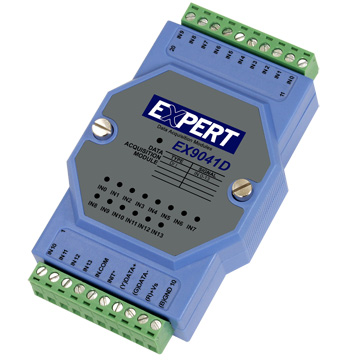

14 Digital Input channels w/ Modbus Module

Key Specifications/Special Features:
Digital I/P channel: 14 Single-ended

     ● Isolation: Isolation with common sources
     ● Isolation Voltage: 3750Vrms
     ● Digital Level 0: +1V max
     ● Digital Level 1: +4V to +30V
     ● Input Impedance: 3K Ohms

Dual Watchdog Timer

Power Input: +10V to 30VDC

Power Consumption: 0.9W

Operating Temp: -25~75℃

Support Modbus protocol
