EX9000 series/Analog Output/
    User manual
9000 Utility
OPC server
VB demo
    Pin assignment
    Block diagram

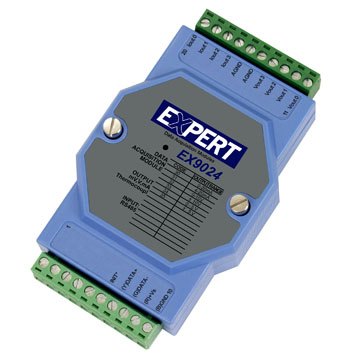

14bit, 4 A/O individual type channels & 4 single ended D/I w/Modbus Module

Key Specifications/Special Features:
Resolution: 14bit

Analog O/P Channel: 4

     ● Voltage O/P: +/-10V, 0~10V, +/-5V, 0~5V
     ● Current O/P: 0~20mA, 4~20mA
     ● Safe Value (When host fail / Comm fail)
     ● Power-on Value
     ● Individual analog output range type Configuration
     ● Isolation : 3000VDC

Digital I/P Channel: 4 Single-ended

     ● Digital Level 0: 1V Max
     ● Digital Level 1: 10V to 30VDC
     ● Isolation : 3750Vrms

Dual Watchdog Timer

Power I/P: +10V to +30V

Power Consumption: 2.4W

Operating Temp: -25~75℃

Support Modbus protocol

Support Modbus protocol
