EX9000 series/Analog Input & Digital Input/Output/

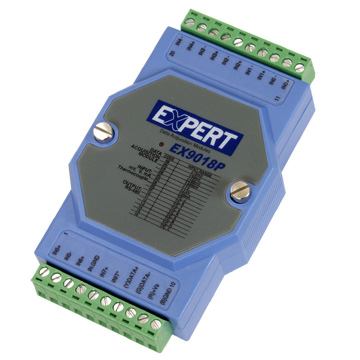

EX9018-M


    User manual
    Driver

9000 Utility

DLL

OPC server

VB demo

    Pin assignment
    Block diagram
    Wire-connection
8 diff A/I channels with sensor I/P w/Modbus Module

Key Specifications/Special Features:
Channel: 8

Resolution: 16 bits

Input Type: V, mV, mA, T/C

Input type and temperature range:

     ● V: +/-1V , +/-2.5V
     ● mV: +/-15mV , +/-50mV , +/-100mV , +/-500mV
     ● mA: +/-20mA (w/125Ohm resister)

     Thermocouple:
     ● J: 0 to 760° C
     ● K: 0 to 1370° C
     ● T: -100 to 400° C
     ● E: 0 to 1400° C
     ● R: 500 to 1750° C
     ● S: 500 to 1750° C
     ● B: 500 to 1800° C
     ● N: -200 to 1300° C

Isolation Voltage: 3000 VDC

Sampling Rate: 10 samples/sec(total)

Input Impedance: 20 MW

Accuracy: +/- 0.1% or better

Power Consumption: 1 W

I/O Connector Type: 10-pin plug-terminal

Support Modbus protocol
