Main Features:

2-ports(RJ-45) Ethernet 10/100 Based-T Comm.

Daisy chain connection with auto-bypass protection

Support Modbus/TCP,TCP/IP,UDP,ICMP,ARP

Support Automatic DIO Sync.(peer-to-peer).

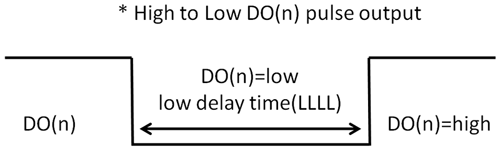

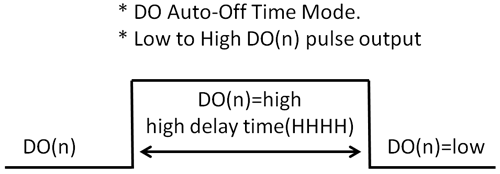

DO Auto-Off Time Mode.

Support 4 Isolated digital output channels (NPN).

Support 10 Isolated single ended with Dry Contact (common source)

Support 2 Isolated with differential counter input

Fully Photo-Isolation 3750Vrms

Protocol: ASCII Format & Modbus TCP

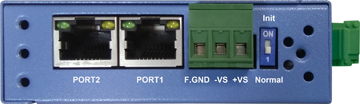

Specifications:



Interface:
Communication	2-port(RJ45) Ethernet 10/100 Based-T comm, Daisy chain connection with auto-bypass protection.
Protocol	Modbus/TCP, TCP/IP, UDP, ICMP and ARP
Led indication	Led for power and Ethernet link status
Isolation Digital Input:
Input channels	10 (DI0~9)
Input type:	Dry contact: single ended with common source      ● logic level 0 (active): Close to GND      ● logic level 1 (inactive) : open Logic level status can be inversed via ASCII/Modbus command
Counter Input	300Hz counter input (32-bit+1-bit overflow)
Optical Isolation Voltage	3750Vrms
Isolation Digital Output:
Output channels	4 (DO0~3)
Output type:	Isolated Open Collector (NPN) Open Collector to +5~30V / 500 mA max load Logic level status can be inversed via ASCII/Modbus command
Pulse output	Each channel supports 300Hz pulse output
Optical Isolation Voltage	3750Vrms
Hardware Counter:
Input channels	2 (C0=DI10, C1=DI11)
Input type:	Wet contact :      ● logic level 0 (inactive) : +2VDC max      ● logic level 1 (active): +5V to +30VDC max
Maximum Count	4,294,967,285 (32-bit + 1-bit overflow)
Input Impedance	2K ohm (Wet Contact)
Input frequency	4500 Hz max
Optical Isolation Voltage	3750Vrms
Power requirement:
Consumption	3.5W (Typical)
Power input	10~30VDC
Operating temperature:	-10 ~ 70° C (14 ~ 158° F)
Operating temperature:	-25 ~ 85 °C (13 ~ 185 °F)
Humidity	5~95% RH, non-condensing

Features:

Daisy Chain Networking and Auto-Bypass Protection

Daisy chain connectivity offers flexible cabling and space saving capabilities. With Ethernet auto-bypass function supported, it prevents accidental power failure if one of the module’s unexpectedly shuts down.

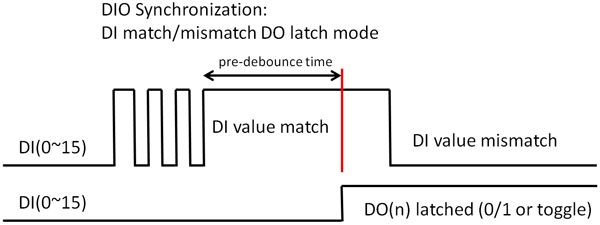

Automatic DIO Synchronization (peer-to peer)
EX9200-MTCP series module also provide a Automatic DIO Synchronization function. With peer-to-peer networking, users can define the mapping between a Pair of EX9200-MTCP series modules so that input values will be directly transferred to output channels. A single digital output channel(Local/ Remote device) is activated(1/0 or toggle)dependent on the digital input channels state data pattern. When the specified DI channels state data pattern changed from “Match” to “Not match” the corresponding DO well be set to active(1 or 0).
