EX9015-MTCP


    User manual
    Driver

9000-MTCP Utility

Demo for DLL & ActiveX

    Pin assignment
    Block diagram
    Wire-connection

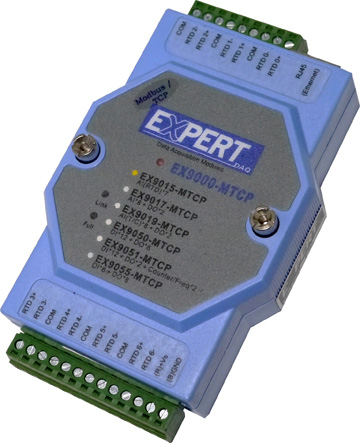

7 RTD analog Input channels with ModbusTCP module


Key Specifications/Special Features:



Support Ethernet 10/100 Based-T communication

Support protocol Modbus/TCP,TCP/IP,UDP,ICMP,ARP

Support individual channel type setting for PT100, PT1000, Balco 500&Ni

Support isolated input channel

Support 16-bit resolution

Support Accuracy:±0.05% or better

EX9000-MTCP series Utility/Software/Command/Web Server Support:

     ● Utility of EX9000-MTCP
     ● TCPDAQ(Ethernet I/O) ActiveX Control
     ● TCPDAQ(Ethernet I/O)DLL API
     ● TCPDAQ(Ethernet I/O)Data Structure
     ● ASCII Command
     ● MODBUS Command
     ● Web Server





Specifications:


Interface:
Communication 10/100 Based-T Ethernet
Protocol Modbus/TCP, TCP/IP, UDP, ICMP and ARP
Led indication Led for power and Ethernet link status
Isolation voltage 3000VDC
Analog Input:
Input channels 7 differential
Input Impedance 1MΩ
Resolution 16-bit
Input type: individual channel type setting PT100, PT1000, Balco 500&Ni
Input range PT100 -50°C ~ 150°C ,0°C ~ 100°C ,0°C ~ 200°C ,0°C ~ 400°C ,-200°C ~ 200°C
PT1000 -40°C ~ 160°C
Balco 500 -30°C ~ 120°C
Ni 604 -80°C ~ 100°C or 0°C ~ 100°C
Ni 1000 -60°C ~ 160°C

Sampling rate 12 samples/sec (16-bit)
Accuracy ±0.05% or better
Zero drift ± 3μV/°C
Span drift ±25 ppm/°C
CMRR 150dB min. @50/60Hz
Over voltage protection +/- 35V
Power requirement:
Consumption 2.2W
Power input 10~30VDC (unregulated)
